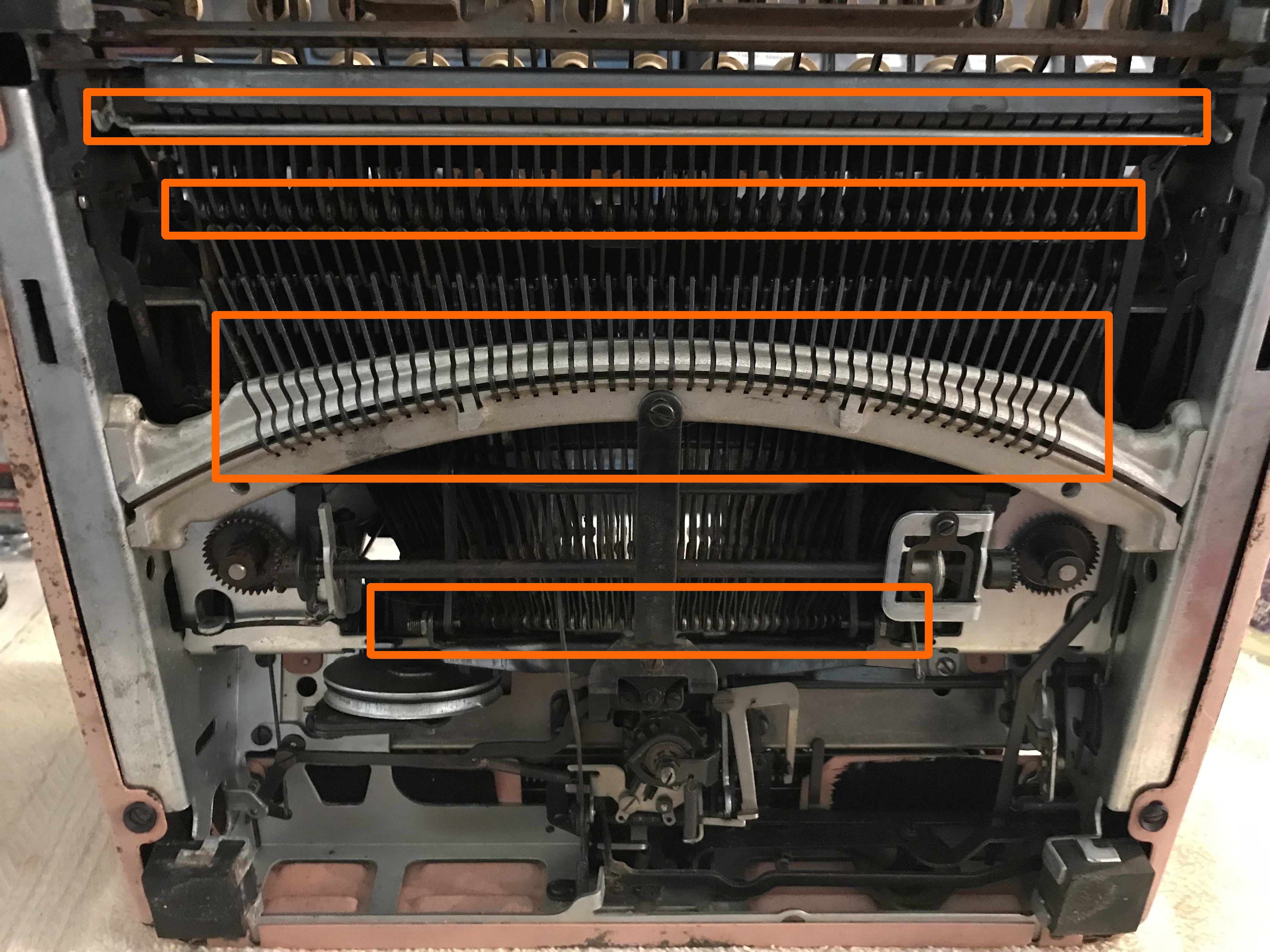

There was so much orange, gummy residue in this S-C Silent-Super that I got from Ebay a couple weeks ago. I think it was old WD-40. The escapement (and carriage rails, margins, shift lock, space bar) responded to a good cleaning with mineral spirits, but the typebars required a lot of work. I searched my mind, but I don’t think I have ever come across as sticky a typewriter as this one. The typebars were gummy not only in the segment but at many other tight pivot points. Some keys were sticking in the sublever segment, and some were gummy at the clevis connections. Others (I think) were sticking in the key guide comb. I also had a couple type slugs that had little corrosion burrs that caused them to stick in the typebar guide. I cleaned up the sides of the affected type slugs with some steel wool.
The mineral spirits I buy in Virginia seems to be a more aggressive formulation than the gentle, forgiving mineral spirits I get in California. I have to be very careful to keep these Virginia mineral spirits away from any painted surface.
After de-gumming the mechanics, I removed the Silent-Super’s tangled drawstring from its guts. I made the new drawstring from heavy duty waxed thread. I didn’t have the little hook end for the drawstring, so I just made a knotted loop and tightened it down at the anchor point at the right end of the carriage.
I used the Robert Messenger method of drawstring attachment and pre-wound my mainspring before I attached my drawstring to the mainspring. However, I just saw a very interesting Phoenix Typewriter video that demonstrates a Smith-Corona mechanism that allows you to wind the mainspring after you attach the drawstring. You learn something new every day !
The tabbing mechanism was still halting and sluggish. I wiped down all the pivots points I could see, but it was still slow on tabbing. Fortunately I had Ted Munk’s Smith-Corona Floating Shift Typewriter Repair Bible. This repair manual is also available as a PDF download. After reading through the section on the tabulator, I found the buried spots I had neglected to clean with mineral spirits. After a good clean, tabbing was fast and smooth.
The uppercase/lowercase alignment was a little off. The lowercase letters were printing a wee bit high.
I referred to Ted Munk’s post about making vertical alignment adjustments on segment shift typewriters. Phoenix Typewriter also has a very good Youtube video on making the adjustments.
I used a 3/16″ nut driver to loosen the lowercase lock nut and turned the adjustment screw a bit with a teeny screwdriver.
Whoops! Wrong way! It’s going up higher. Other way, other way. That’s better.
I tightened down the lowercase lock nut and it’s all good.
Here’s a parts diagram for the Silent-Super that I snagged from a 1958 Silent- Super/Sterling/Clipper manual in Richard Polt’s typewriter manual archive:
I removed the platen to clean it and all the bits around it which were still very sticky and furry from congealed something-or-the-other.
Removing the platen is pretty easy on this type of Smith-Corona portable. Joe Van Cleave has a good Youtube video describing the features of a S-C Silent. At about 11:30 in the video, he demonstrates how to pop out the platen.
- Lift the paper bail
- Tilt back the tab cover
- Pull out the variable line spacer on the left platen knob
- Press the platen release latch forward
- Lift platen out
I cleaned the gummy residue from the platen, rubber bail rollers and feed rollers with denatured alcohol.
Pinkie’s outer skin was still pretty rough. She had lots of surface rust and bare metal.
I used diluted Scrubbing Bubbles to gently clean the pink paint. I was worried that it would remove paint, so I tested in an unseen spot in the back. It removed gray grunge but no pink paint.
Here’s a photo on my work bench after I had cleaned her backside. The machine arrived from Ebay with a gray, grubby cast, but a careful cleaning slowly revealed her bright pink flesh.
Pinkie’s pink paint was very bright, but she had some major dings. I primed bare metal spots, and I made up an acrylic paint mixture of various pinks for paint touch-up. It was tricky because the pink was not uniform in color over the typewriter: salmon here, coral there, dusty rose over there.

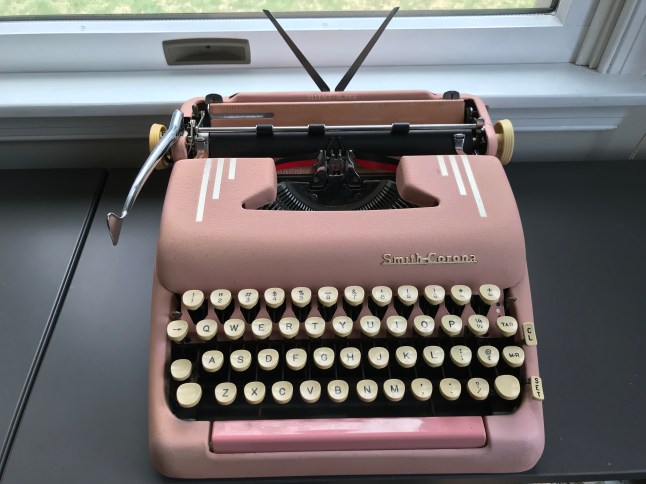

I made very conservative, respectful paint touch-ups. This Silent-Super is a Smith-Corona Super-Sweet:
Old Pinkie has lost a lot of her grungy, corrupt toy vibe. However, I “kept it real” with this clean-up, so she still has her charming smattering of corroded freckles.
X Over It has a nice collection of Smith-Corona portable advertisements. Pinkie’s color is officially called “Coral Pink”. In 1957, Silent-Supers’ list price was $129.00. If you convert that to 2019 dollars, that’s about $1160.00. That sounds like a lot, but I know that I spent more on computers in the early 1990s that are now considered e-waste. Hello, 386/33 with a whole 4Mb of RAM!

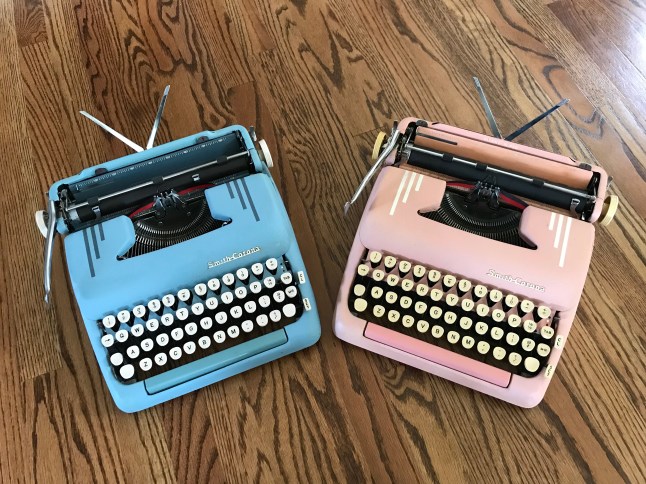

Pinkie gets along great with her blue S-C Sans-A-Tab brother. Maybe I can rent out my pink and blue Silent-Supers to people throwing gender reveal parties. Typewriters seem safer than involving alligators.
I have a pretty collection of colorful Easter eggs sunning themselves on the bookshelf.
Sing it, Pinkie:
22 thoughts on “Make Mine Pink: Smith-Corona Super-Sweet”
Another entertaining and informative post—well referenced and well narrated. Always a pleasure to read, and Pinkie looks fantastic!
LikeLiked by 1 person
Thank you – these very dirty typewriters are my special favorites.
LikeLiked by 1 person
Congratulations! That is a fine job on Pinkie. There are 2 enemies of a typewriter: WD-40 and key choppers.
I am going to add another enemy to typewriters: wet basements.
LikeLiked by 1 person
Seeing the pictures of the machine partly cleaned made me think how in the restoration of the Sistine Chapel they deliberately left certain patches untouched, to show how dingy the frescoes were pre-restoration. Nice work by you!
Pinkie is a work of art – mid-century industrial art.
LikeLiked by 1 person
I am so glad I subscribed to this! Love reading your posts. Pinkie looks marvellous. I have the same baby-blue Super as you. Now I need a pink one. You are awesome. And thank you.
Pinkie was supposed to be a fun “catch and release” project…but I got a little attached and I think I need this pink one.
Fantastic blog post, as usual. The hard part to me is the paint touch-up.
LikeLiked by 1 person
The paint touch-ups required some experimenting, especially since the color was different in different areas of the typewriter. I would mix up the pink, test, add a bit of yellow or blue or black, test again, etc.
Well done, she’s a beauty.
Thanks, Joe. Your video on the S-C Silent was really helpful when I needed to remove the platen. I have been diving into your Youtube video archive recently – they are very entertaining.
Woot! Excellently done, and looks delicious now! 😀
The Floating Shift machines are a delight to work on – Smith-Corona really went the extra mile in both the engineering and documentation for this design. Reminds me that I should tinker on the backspace of my Commander soon. Not that it’s that bad, but it’s a good excuse to lift the hood. (:
These typewriters feel like comfortable old friends – familiar, solid, forgiving, and durable. I wish I had a supply pipeline of distressed S-C portables to work on.
LikeLiked by 1 person
Nice to see you posting again. Pinkie looks beautiful. I appreciate the number of sources you mentioned in your post. I also appreciate how you see the diamond in the rough when you take on a typewriter like these pastel Silent-Supers. I’ve seen so many 5-series machines and they tend to rust on the side panels near the space bar. Seems to be a tender spot in the manufacturing process. So nice that you rescued a machine that many would pass over because of its “dinge.”
I have a weakness for pastel 1950s portables – especially Smith-Corona 5-series. They are impressively durable. They can look terrible but still type. I enjoy working on them also because they are compact and small enough for me to handle easily. And the mechanics are very accessible. And there’s excellent service documentation out there for them. I could go on and on. And I love typing on them.
Great information! I love SC SS’s too, remind me of when I was a kid and watched my mom typing. Question: how did you prime the dings and bare metal spots? I have some touch up painting to do too, thanks!
Ugena, I really love these 1950s SC portables. This pink one was pretty banged up. I fixed up the scrapes and dings using a layer of white latex primer (left over from painting projects around the house). I only painted the scraped and broken patches. After the primer dried, I mixed white latex primer with a little red acrylic paint and yellow acrylic paint (borrowed from my daughter’s craft stash) until I achieved a match to the original pink. I dabbed on very carefully in the small areas, stippling with a brush to get a little texture on the surface. Hope that helps.
Thank you, it does! I have 4 of 5 color varieties offered in 1958! I dont have pink yet. I have a desert sand that absolutely types like butter and its cursive. Love it. My seafoam green, which is what mom had, sounds like I’m typing in a well, it’s so slappy and loud. I think the noise comes from when the slugs arms go back down and hit the felt, which is 61 years old! Anyway, thanks for your reply. Happy typewritering!
I was just talking with my “first cousin once removed” (my dad’s cousin) this past weekend. She was noting her slight disappointment that I found myself to be a fan of typewriters just a year after she had sold her typewriter that she had owned from new since high school — thanks to some money that had been left for her by another family member that had passed.
As it turned out, her typewriter was mid-50’s (1956 or 1957 I believe she said) Coral Pink Silent Super. She noted that I probably wouldn’t have wanted a pink typewriter anyway. I simply replied that as she hadn’t used it in decades and it was only taking up space, she did the right thing by moving it on for someone else to enjoy. I didn’t have the heart to tell her that despite the fact that I’m definitely not into pink anything, I would have loved to have taken ownership of her typewriter. Especially knowing that she had owned it since new. But as it is, I don’t need another 1950’s Silent Super as I already own a 1956 model in Alpine Blue in minty condition and a 1957 model in Desert Sand that is very clean, retaining all of it’s original paint, but also worn nearly smooth in some areas such as the upper right top edge of the ribbon cover just in front of the right platen knob. (It’s obvious that the long-term owner had brushed up against this portion of the machine consistently and often.) I would point out that I totally dig them both for different reasons.
Fantastic post by the way. I’d personally much rather have a typewriter still retaining it’s original paint (even if that paint is far from perfect) along with an honest patina of use/time, than a typewriter that’s been fully stripped, followed by a fancy new paint job.
The Silent Supers are so fun and tempting to collect. The pastel colors are just beautiful, and they are very fine typers. I love the feel of a 1950s Smith-Corona portable.
